| Tolerance Type | Description |
| Precision Tolerance | Parts are manufactured and inspected strictly according to your drawing specifications and GD&T annotations, with a minimum tolerance of ±0.05 mm. |
| General Tolerance | ±0.05 mm |
| Minimum Feature Size | 0.5 mm. The exact minimum feature size may vary depending on the part geometry and selected material. |
| Threading & Tapped Holes | Capable of machining any standard thread sizes, as well as customized thread specifications. |
| Edge Condition | Sharp edges are deburred and chamfered by default. |
| Surface Finishing | Anodizing, Powder Coating, Spray Painting, Laser Engraving, Silk Screen Printing |
| Minimum Wall Thickness | 0.5mm |
| Minimum End Mill Size | 0.5mm |
| Minimum Drill Hole Size | 1mm |
| Minimum Part Size | CNC Milling: 5 × 5 × 5 mm; CNC Turning: 2 × 2 mm; |
| Maximum Part Size | CNC Milling: 4000 × 1500 × 600 mm
CNC Turning: 200 × 500 mm |

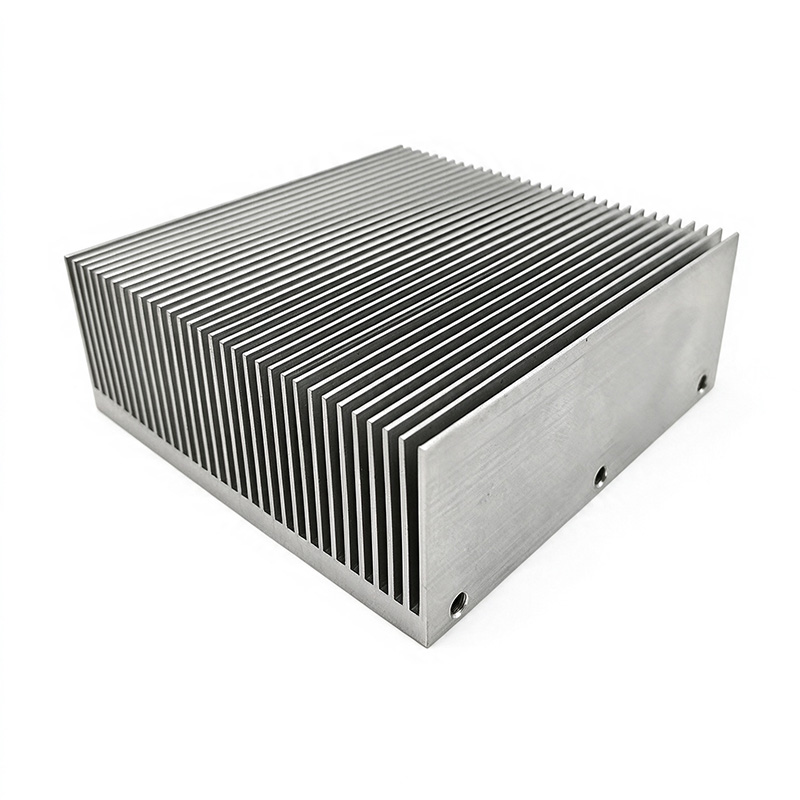

Skived-fin heat sinks are the workhorse cooling solution for IGBTs, power MOSFETs, rectifier diodes and complete power modules. Unlike glued or bonded fins, the fins are skived directly from the base plate, so there is no thermal joint between fin and base - the single biggest source of thermal resistance in a heavy power sink. This is why inverter, servo-drive, UPS and welding-equipment designers specify skived fins above 500 W per device.

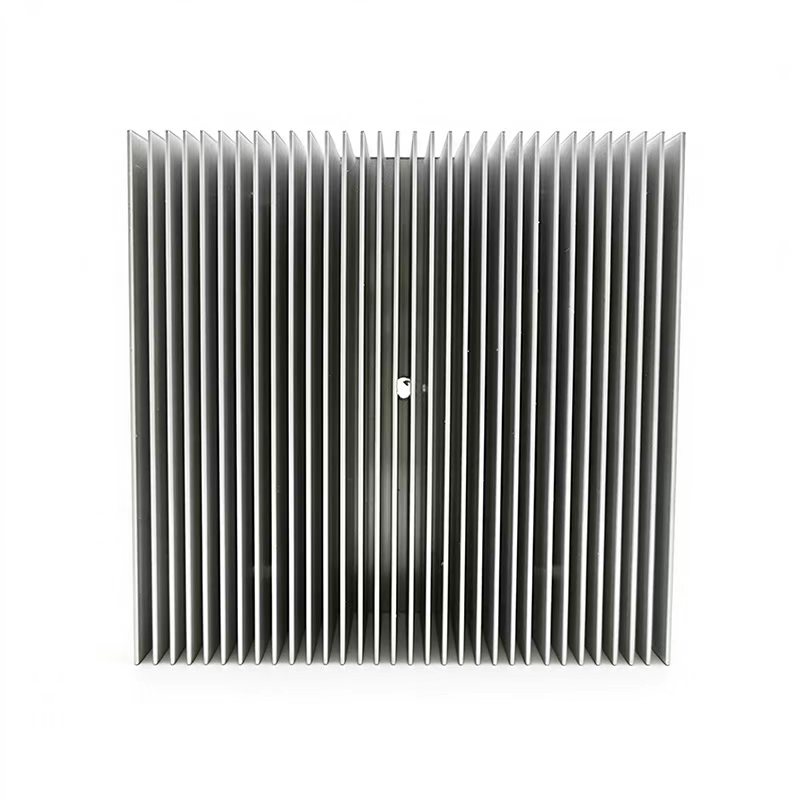

The mounting face is fly-cut flat and parallel, then CNC-drilled and tapped to your module pattern - whether that is a single IGBT, a half-bridge stack, or a full PIM block in a variable-frequency drive. Dense straight comb fins maximize surface area in the airflow path of a fan or natural-convection cabinet, and the natural clear anodize protects the aluminum in industrial enclosures.
We supply standard skived-fin profiles cut to length, or custom-skive taller fins and wider bases for higher power, then finish holes, slots and threads to your drawing. Samples ship within days; production runs scale to 50,000+ pieces per month under NDA.
Fins are skived from the base plate itself, eliminating the bonded-interface thermal resistance that limits glued-fin sinks at high power.

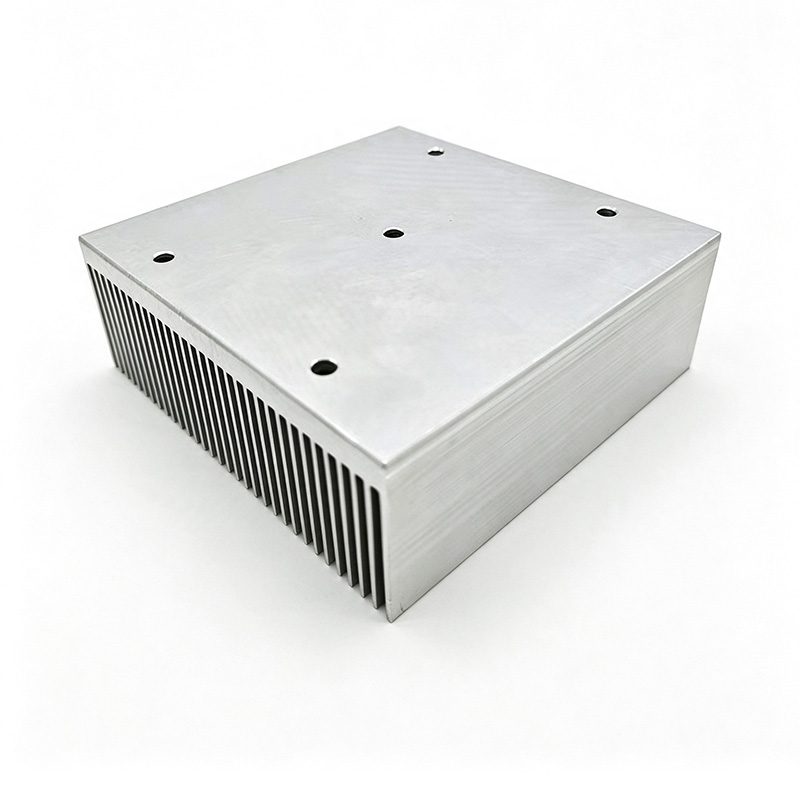

The device face is milled flat and parallel so IGBT and diode modules sit evenly with thermal grease, lowering contact resistance.

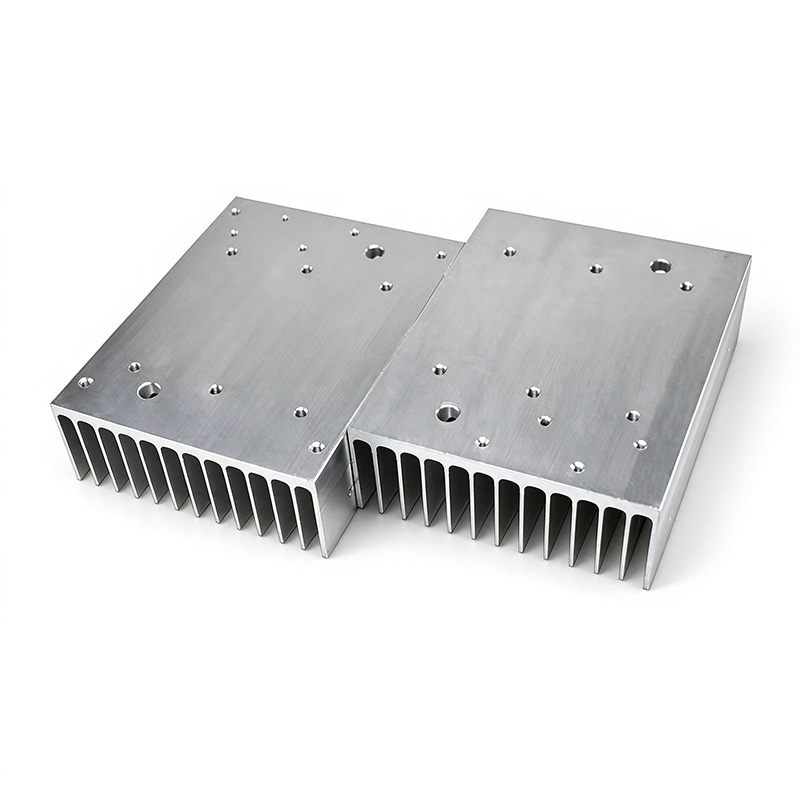

Clearance, tapped and counterbore holes are CNC-machined to your exact IGBT, PIM or driver layout - ready to bolt into the cabinet.
From aerospace-grade aluminum to medical-certified engineering plastics, our in-house CNC machining centers work a broad range of metals and plastics under one roof.
Don’t see your material? Send your drawing for review — we will confirm availability and quote it.
Functional and cosmetic finishes applied in-house or through vetted partners.
Type II protective anodize, natural silver finish.
Type III hard coat, wear-resistant black.
Blue, red, gold, green dye for audio and 3C.
Uniform matte texture, hides machining marks.
Durable corrosion-resistant RAL colors.
Removes free iron, boosts stainless corrosion.
Zinc, nickel, chrome, tin for connectors.
Permanent non-contact logos and serials.
