| Tolerance Type | Description |
| Precision Tolerance | Parts are manufactured and inspected strictly according to your drawing specifications and GD&T annotations, with a minimum tolerance of ±0.05 mm. |
| General Tolerance | ±0.05 mm |
| Minimum Feature Size | 0.5 mm. The exact minimum feature size may vary depending on the part geometry and selected material. |
| Threading & Tapped Holes | Capable of machining any standard thread sizes, as well as customized thread specifications. |
| Edge Condition | Sharp edges are deburred and chamfered by default. |
| Surface Finishing | Anodizing, Powder Coating, Spray Painting, Laser Engraving, Silk Screen Printing |
| Minimum Wall Thickness | 0.5mm |
| Minimum End Mill Size | 0.5mm |
| Minimum Drill Hole Size | 1mm |
| Minimum Part Size | CNC Milling: 5 × 5 × 5 mm; CNC Turning: 2 × 2 mm; |
| Maximum Part Size | CNC Milling: 4000 × 1500 × 600 mm
CNC Turning: 200 × 500 mm |
When junction temperature cannot be held by an aluminum sink, the answer is copper. T2 (C11000) pure copper conducts heat at roughly 400 W/mK - about twice 6063 aluminum - which cuts spreading resistance in half for dense, high-flux chips such as high-end CPUs, IGBT modules, laser diodes and RF power transistors.

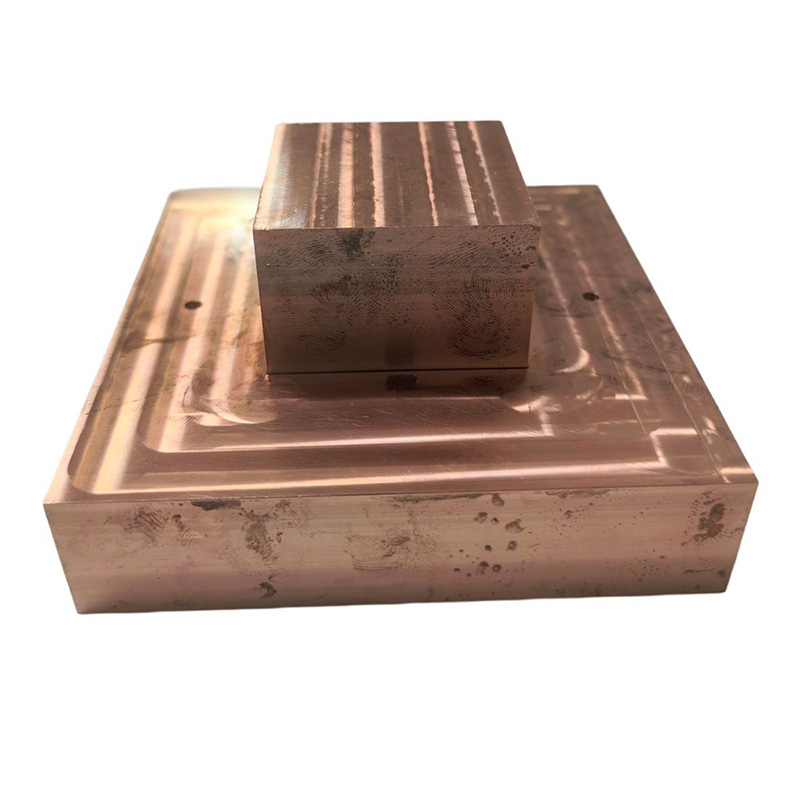

These sinks are skived from a solid copper block: thin fins are cut directly from the base plate, so there is no solder, epoxy or interference layer between fin and base. The contact face is fly-cut flat and milled to seat against CPU lids, IGBT packages or laser submounts, and tapped holes (often with steel inserts) bolt the heavy copper sink down without crushing the soft base.

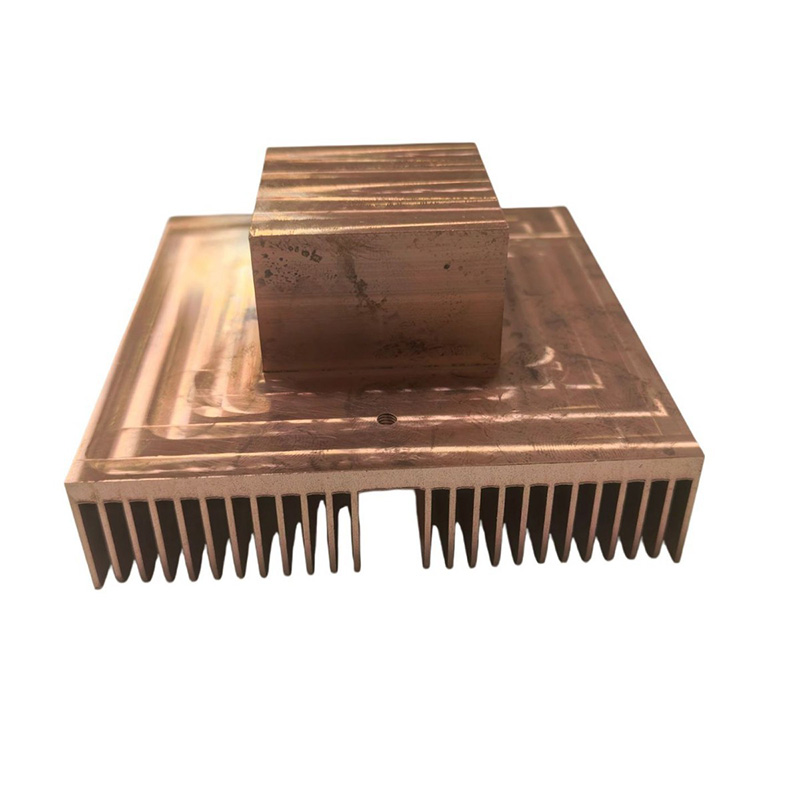

Copper sinks are also the standard base material for liquid cold plates - the thick, flat copper plate is the interface between device and coolant channels. We CNC mill the base, skive the fins, drill and tap mounting holes, and finish to your drawing. Samples ship within days; production runs scale under NDA.
At ~400 W/mK, T2 copper spreads heat away from a small die faster than any aluminum alloy - the default choice when junction temp matters.
Fins are cut from the base plate itself, eliminating the bonded-interface thermal resistance that limits glued aluminum or copper sinks.
The thick flat copper face is the standard interface for liquid cold plates - we mill it flat and drill ports for coolant manifolds.
From aerospace-grade aluminum to medical-certified engineering plastics, our in-house CNC machining centers work a broad range of metals and plastics under one roof.
Don’t see your material? Send your drawing for review — we will confirm availability and quote it.
Functional and cosmetic finishes applied in-house or through vetted partners.
Type II protective anodize, natural silver finish.
Type III hard coat, wear-resistant black.
Blue, red, gold, green dye for audio and 3C.
Uniform matte texture, hides machining marks.
Durable corrosion-resistant RAL colors.
Removes free iron, boosts stainless corrosion.
Zinc, nickel, chrome, tin for connectors.
Permanent non-contact logos and serials.
