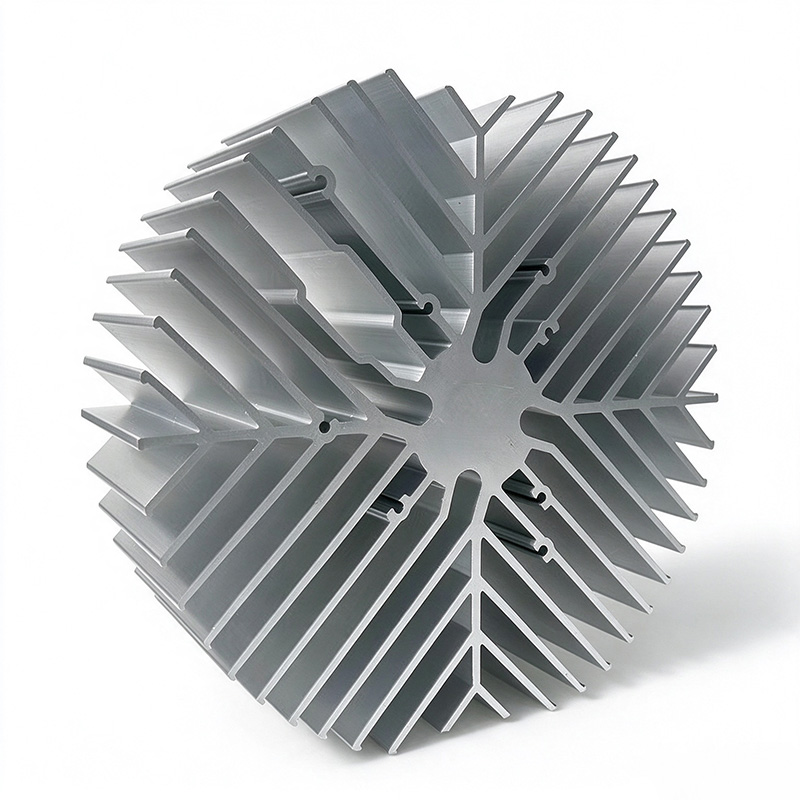

Custom 6061 Round Aluminum Heat Sink CNC Machined
- Skived Comb Fins: Fins are skived directly from the base plate, so there is no thermal joint between fin and base - critical for high-wattage IGBTs and inverters where every degree counts.
- Milled Flat Device Base: The mounting face is fly-cut flat to seal tightly against IGBT, MOSFET or diode modules with thermal grease, keeping junction temperature low.
- Drilled & Tapped to Your Pattern: Clearance and tapped holes are CNC-machined to your module mounting layout - no separate brackets, no drill fixtures on the shop floor.
- Natural Silver Anodize: A clear anodize preserves high emissivity and protects the aluminum in industrial cabinets, inverter rooms and drive enclosures.
| Tolerance Type | Description |
| Precision Tolerance | Parts are manufactured and inspected strictly according to your drawing specifications and GD&T annotations, with a minimum tolerance of ±0.05 mm. |
| General Tolerance | ±0.05 mm |
| Minimum Feature Size | 0.5 mm. The exact minimum feature size may vary depending on the part geometry and selected material. |
| Threading & Tapped Holes | Capable of machining any standard thread sizes, as well as customized thread specifications. |
| Edge Condition | Sharp edges are deburred and chamfered by default. |
| Surface Finishing | Anodizing, Powder Coating, Spray Painting, Laser Engraving, Silk Screen Printing |
| Minimum Wall Thickness | 0.5mm |
| Minimum End Mill Size | 0.5mm |
| Minimum Drill Hole Size | 1mm |
| Minimum Part Size | CNC Milling: 5 × 5 × 5 mm; CNC Turning: 2 × 2 mm; |
| Maximum Part Size | CNC Milling: 4000 × 1500 × 600 mm
CNC Turning: 200 × 500 mm |
What Is This Service

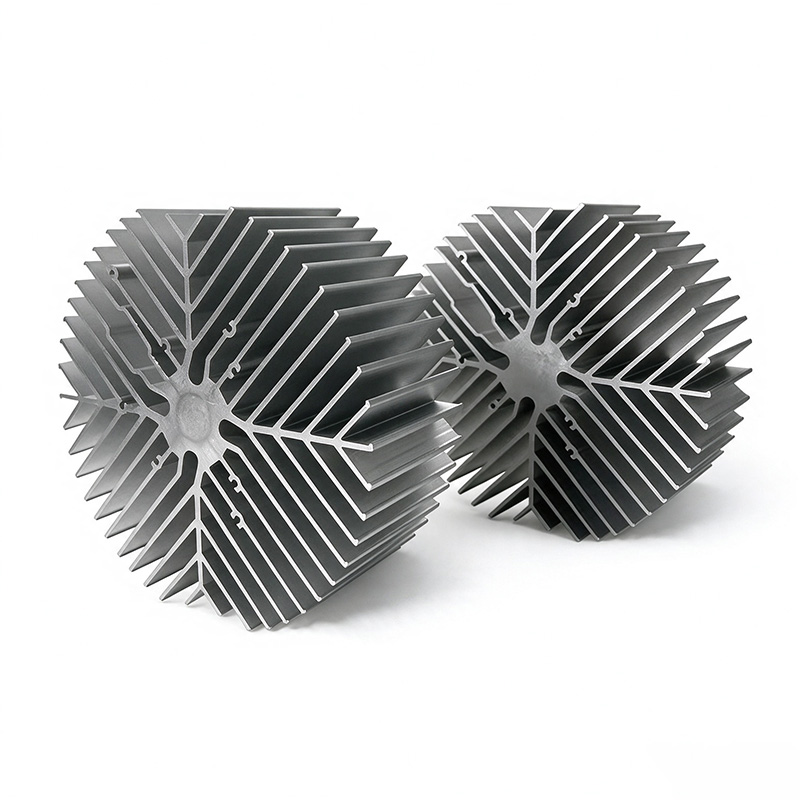

When a standard round sunflower sink cannot meet your mechanical or thermal spec, the answer is a custom 6061 round extrusion tooled to your drawing. These sinks combine radial cooling fins with integrated T-slots, mounting bosses and internal ribs - all extruded in one piece - so the sink also functions as a structural part of your fixture rather than a bolt-on accessory.
We prefer 6061-T6 over 6063 for these custom round profiles because it is stronger, machines cleaner and holds threaded bosses and cantilevered mounting tabs without yielding. After extrusion, the center bore, cross-holes, slots and mounting faces are finished on CNC centers to tight tolerances, then clear anodized. This is the typical solution for high-end LED downlights, machine-vision sensor heads, cylindrical power supplies and custom instrument enclosures.
Send us your 2D drawing or 3D model - we will review the tooling, propose fin geometry for your target wattage, and return samples within weeks for approval before production. Volumes scale from 100-piece prototypes to 50,000+ per month under NDA.
Custom Round Sink Capabilities
Custom Extrusion Tooling
If no stock profile fits your envelope, we open a dedicated extrusion die for your fin count, height and internal features - one part that cools and mounts.
6061-T6 Structural Strength
Stronger than 6063, 6061 carries threaded bosses, T-slots and cantilevered tabs so the sink doubles as a structural component.
CNC Finish to Drawing
Center bore, cross-holes, slots and faces are CNC-machined to your model with +/-0.05 mm tolerance - no secondary fixturing on your line.
Materials We Machine
From aerospace-grade aluminum to medical-certified engineering plastics, our in-house CNC machining centers work a broad range of metals and plastics under one roof.
Metals
Aluminum
Stainless Steel
Carbon & Alloy Steel
Brass & Copper
Titanium & Exotics
Engineering Plastics
POM (Delrin)
Nylon (PA66)
PTFE (Teflon)
PEEK / PEI (Ultem)
ABS / PC / PMMA
Don’t see your material? Send your drawing for review — we will confirm availability and quote it.
Surface Finish Options
Functional and cosmetic finishes applied in-house or through vetted partners.

Clear Anodize
Type II protective anodize, natural silver finish.

Black Hard Anodize
Type III hard coat, wear-resistant black.

Color Anodize
Blue, red, gold, green dye for audio and 3C.

Bead Blast
Uniform matte texture, hides machining marks.

Powder Coating
Durable corrosion-resistant RAL colors.

Passivation
Removes free iron, boosts stainless corrosion.

Plating
Zinc, nickel, chrome, tin for connectors.

Laser Marking
Permanent non-contact logos and serials.
From Drawing to Delivery
Quality You Can Verify


More Products in This Category
Custom sunflower pin-fin round aluminum heat sinks for COB LED and high-power lighting - radial fins, central bore, gold anodized, drilled mounting holes.
View Product →
Custom black anodized aluminum heat sinks with dense fins, flat base and drilled mounting holes for power supplies, amplifiers and PCB electronics.
View Product →
U-channel clamp-on aluminum heat sinks with semicircular base for pipes and cylindrical housings, black anodized, CNC cut and drilled to your fixture.
View Product →

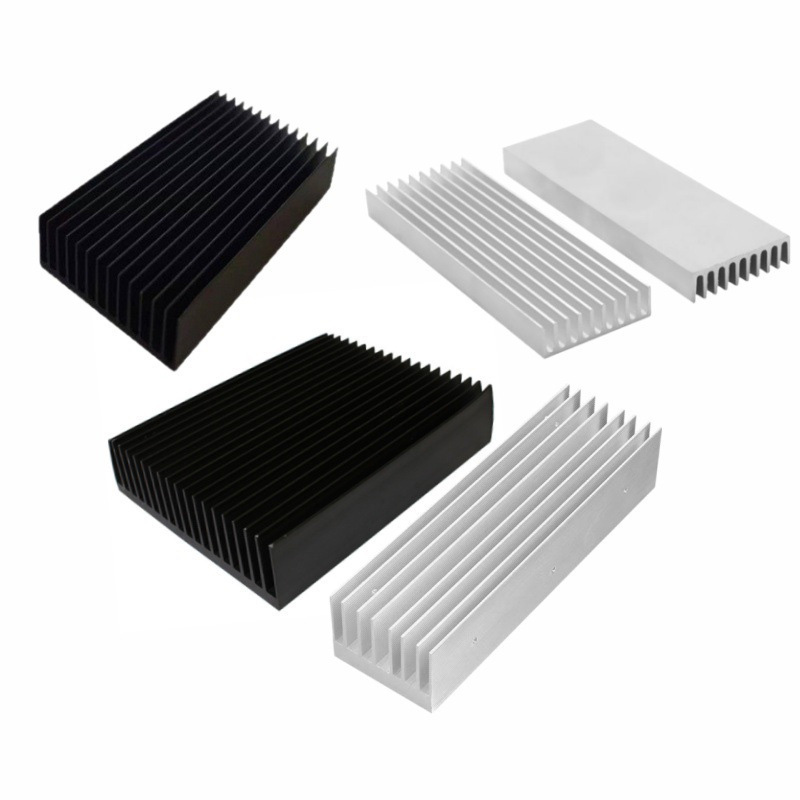

Standard aluminum extrusion heat sink profiles in black anodized or natural finish - 6063, cut to length, drilled holes, fast samples from stock.
