CNC Turning for Custom Automotive Shafts & Precision Fasteners

In today’s automotive world, building electric vehicles and better engines calls for parts that hold up under tough conditions. Precision stands as a must-have, not a nice extra. Rejin CNC holds IATF 16949 certification as a precision machining manufacturer. The company leads in making key pieces for engines, chassis, and transmissions. Through strong custom automotive shafts CNC turning methods and careful checks, a trusted custom shaft supplier helps big suppliers and car makers deal with new vehicle designs.

Engineering Challenges in Modern Automotive Shaft Production

Making transmission and drive shafts means handling materials and shapes that bring real difficulties.

Material Selection and Stability

Custom automotive shafts often use strong alloys such as 42CrMo or 20CrMnTi to handle twisting force and repeated stress. Finding an automotive machining supplier who knows how these metals behave during heat treatment matters a lot to avoid bending or twisting while machining.

• High-Strength Alloy Machining: Working with 42CrMo needs special tool shapes and cooling methods to control heat and keep the metal strong without wearing tools too fast.
• Concentricity and Balance: Parts that spin at high speeds need roundness within 0.01 mm so they do not shake and damage the drivetrain over time.
• Surface Hardness Requirements: Getting a hard outer layer while keeping a tough inside often needs extra steps like adding carbon or quick cooling. These steps affect the first CNC turning setup.

Overcoming Geometric Complexity

New car designs often put splines, threads, and different diameters on custom automotive shafts.

• Integrated Multi-Process Machining: New CNC turning centers with live tools let you mill, drill, and tap in one go. This cuts errors that build up when moving parts between machines.
• Deep Hole and Internal Feature Accuracy: Long shafts need special supports and tools that stop shaking to keep measurements within ±0.01 mm for inside holes and threads.
• Thermal Expansion Compensation: In big production runs, cutting heat changes sizes. Good machines use sensors to adjust the path and keep every batch of CNC turned components the same.

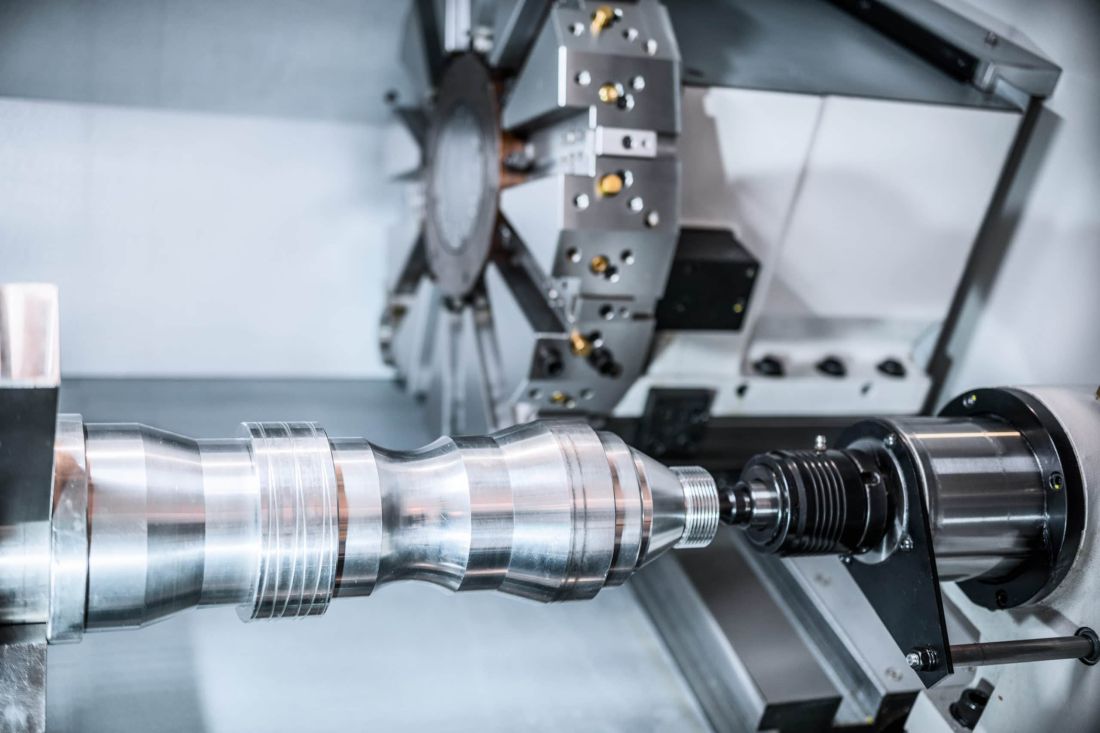

Advanced CNC Turning: The Core of High-Precision Shaft Manufacturing

CNC turning needs to work like exact science to meet car industry rules, not just cut metal away.

The Power of 5-Axis and Multi-Tasking Lathes

Rejin CNC, a leading CNC turning manufacturer, uses top machines from Mazak and DMG MORI. These deliver the complicated shapes needed for new energy motor housings and transmission parts.

• Reduction in Cycle Time: Five-axis work can drop the time for complex automotive motor housings from 120 minutes down to 45 minutes. This brings down buying costs a lot.
• Exceptional Surface Finish: Automotive CNC machining reaches below Ra0.8μm on surfaces. This matters for seals and spots where bearings press in tight.
• Automated Tool Management: Machines with automatic tool changers keep complex CNC turned parts running without stopping much. This lowers mistakes during long shifts.

Tolerance Control and Batch Reliability

Steady results decide whether buyers stick with an automotive machining supplier.

• ±01mm Precision Threshold: Everyday machining might allow wider gaps, but car-grade shafts often need tolerances as tight as ±0.01mm for perfect fit in fast transmissions.
• In-Process Inspection (FAI): A strict first article check confirms the setup works before the whole batch starts.
• Data-Driven Quality Control: Following IATF 16949 rules for tracking gives full records for every batch of precision automotive parts sent to clients.

Precision Fasteners: Solving Critical Sealing and Fastening Issues

Precision fasteners hold everything together in cars. They keep fluid systems and structures tight under pressure and shaking.

The Necessity of High-Accuracy Threading

One bad bolt can cause big leaks, so Rejin CNC pays close attention to every thread.

• Custom CNC Turned Nuts & Studs: Unlike cheap cold-formed fasteners, precision fasteners from an expert custom shaft supplier give better thread accuracy. They can use materials like SUS316 for stronger rust resistance.
• Sealing Surface Integrity: For fluid parts, we machine stepped shoulders and round bases that stop leaks in cooling or fuel lines.
• High-Strength Material Fastening: Steels like 40Cr keep clamping force even when engines get hot.

Surface Treatments for Harsh Environments

Car parts face salt on roads, water, and big temperature swings, so finishing the surface counts.

• Anodic Oxidation for Aluminum: This protects light parts like bike frames or EV battery holders and gives a nice look.
• Precision Electroplating: An even metal layer such as nickel or zinc adds wear resistance and better conductivity to CNC turned components.
• Secondary Surface Strengthening: Sandblasting or laser marks help with branding, ease stress, and make coatings stick better.

Decision Gateways: When to Choose CNC Turning over Alternative Methods

Picking the manufacturing way affects time, cost, and how parts perform.

Volume-Based Decision Making

Procurement teams often ask when to move from automotive CNC machining to stamping or auto lathes.

• The 1,000 to 10,000 Unit Critical Point: For runs under 5,000 pieces, custom automotive shafts CNC turning usually costs less than buying expensive stamping dies.
• Complexity vs. Cost: Parts needing ±0.01mm accuracy and angled features work best with CNC turning, no matter the number. It avoids errors from several stamping steps.
• Prototyping for Iteration: During development, a quick precision parts manufacturer lets you change designs in 3–7 days. Mold methods cannot match that speed.

Design for Manufacturing (DFM) Support

At Rejin CNC, engineers act as a trusted precision parts manufacturer partner. They improve designs before production starts.

• Free DFM Drawing Review: We look at your CAD files to spot costly issues like tight tolerances on simple areas or hard inside shapes.
• Material Substitution Advice: We might suggest other metals that work the same but cost less or machine easier, such as treated stainless instead of high-nickel alloys.
• Process Integration: Small design changes that allow one-setup machining cut per-piece costs and speed up the whole job.

Case Study: Reliability in Mass Production for a Global Tier 1 Supplier

A project with a European Tier 1 supplier shows how we move from samples to big runs without losing quality.

Project Overview and Challenges

The client needed a precise stainless steel sleeve for a fluid system in vehicles. It required good roundness and exact threads to stop leaks under pressure.

• Monthly Capacity Requirement: They wanted 20,000 pieces each month with almost no defects on the assembly line.
• Initial Prototype Success: Our 5-axis machines cut prototype time from the usual 12 days to 5 days.
• Mass Production Consistency: We gave the job a dedicated manager and used special Japanese CNC turning lathes. Every batch reached 99.5 percent good parts for all CNC-turned parts.

Results and Long-Term Partnership

The work lowered supply risks for the client.

• Zero Leakage in Field Testing: The parts sealed perfectly during tests and got quick approval for full production.
• Enhanced Assembly Speed: Clear threads helped the client speed up their own assembly by 15 percent.
• Ongoing R&D Collaboration: After this success, Rejin CNC now joins early development for the client’s next electric vehicle models.

Partner with Rejin CNC for Your Automotive Excellence

Whether you build a new drivetrain sample or need reliable OEM CNC machining service for large runs, Rejin CNC brings the know-how and machines. Our IATF 16949 facility in Dongguan holds over 100 modern tools ready for your toughest car jobs.

Contact us today for a free DFM review and quote within 24 hours. We turn your drawings into strong working parts.

FAQ

Q: Why is IATF 16949 certification critical when choosing a custom shaft supplier?

A: This certification means the maker follows strict quality rules made for cars. It covers risk handling, steady batches, and stopping defects. These points matter for safety parts like transmission shafts.

Q: At what production volume should I switch from CNC turning to metal stamping for automotive fasteners?

A: Usually above 20,000 to 50,000 pieces and when the shape allows, stamping or cold heading saves money. But for precision fasteners needing ±0.01mm accuracy or complex inside threads, CNC turning gives better dependability.

Q: How does 5-axis machining improve the production of new energy vehicle (NEV) components?

A: NEV parts like motor housings often have curved inside shapes. Five-axis work finishes them in one setup. This cuts positioning mistakes and drops time by up to 60 percent, lowering buying costs directly.

Q: What are the most common design mistakes in automotive CNC turned parts?

A: People often set impossible tolerances like ±0.001mm on simple surfaces or create inside features that need special, expensive tools. Good DFM help from an experienced automotive machining supplier fixes these for easier making and lower prices.
