Master Complex Geometry: 3-Axis vs. 5-Axis CNC Machining

In today’s fast-changing world of global manufacturing, the need for accuracy is no longer optional—it forms the basic standard. As fields such as New Energy Vehicles (NEV), robotics, and aerospace expand design limits, engineers often face a key choice: produce a part with basic 3-axis milling, or use the superior features of 5-axis machining for its intricate shape?

Picking the incorrect method can result in higher expenses, reduced accuracy, or longer delivery times. At Rejin CNC, we focus on handling these key decisions, offering precise CNC services that match your design needs with the best production methods.

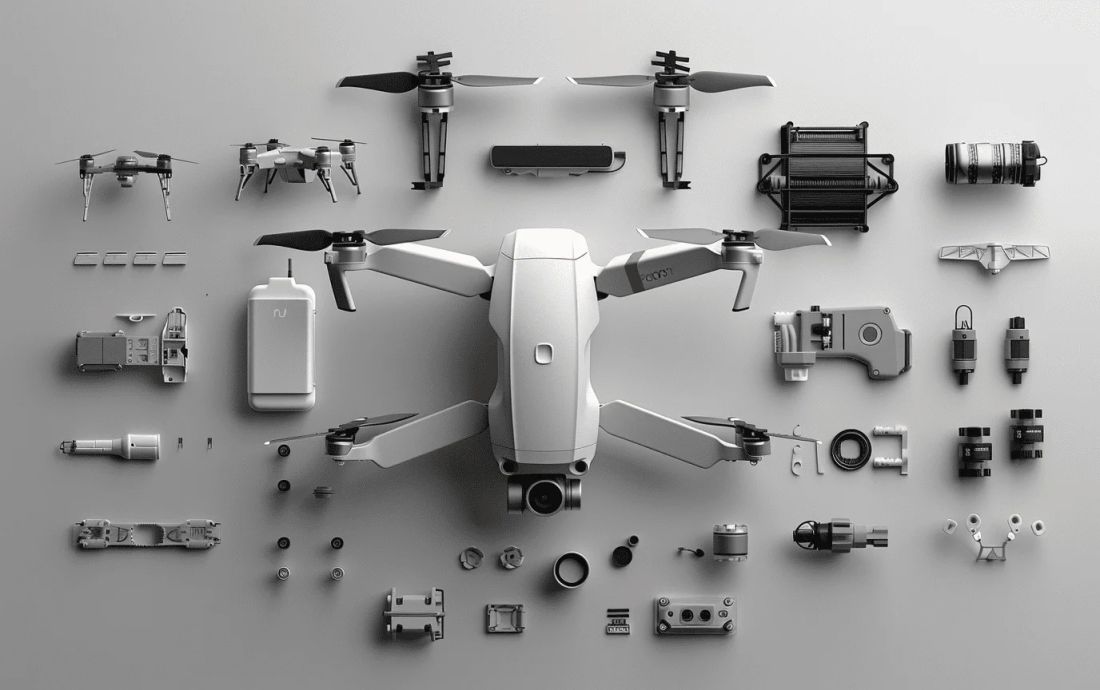

Understanding the Shift: The Rise of Custom CNC Non-Standard Parts

The current market has shifted from uniform components. The growth in automation and intelligent tech means parts are more combined, versatile, and shape-wise demanding. Off-the-shelf standard items usually cannot satisfy the strict needs of targeted sectors.

Industry Drivers: Complexity and Function Integration

Several main elements drive the move to custom, non-standard CNC parts.

• Sector Sophistication: In areas like medical devices and UAVs, structural parts must be light but very durable, needing intricate inner spaces that basic machining struggles to access.
• Function Integration: To cut down on assembly mistakes, various elements are combined into one intricate “monolithic” unit.
• Small-Batch Trends: The trend toward “high-mix, low-volume” output calls for production partners who can adjust designs swiftly without costly, fixed molds.

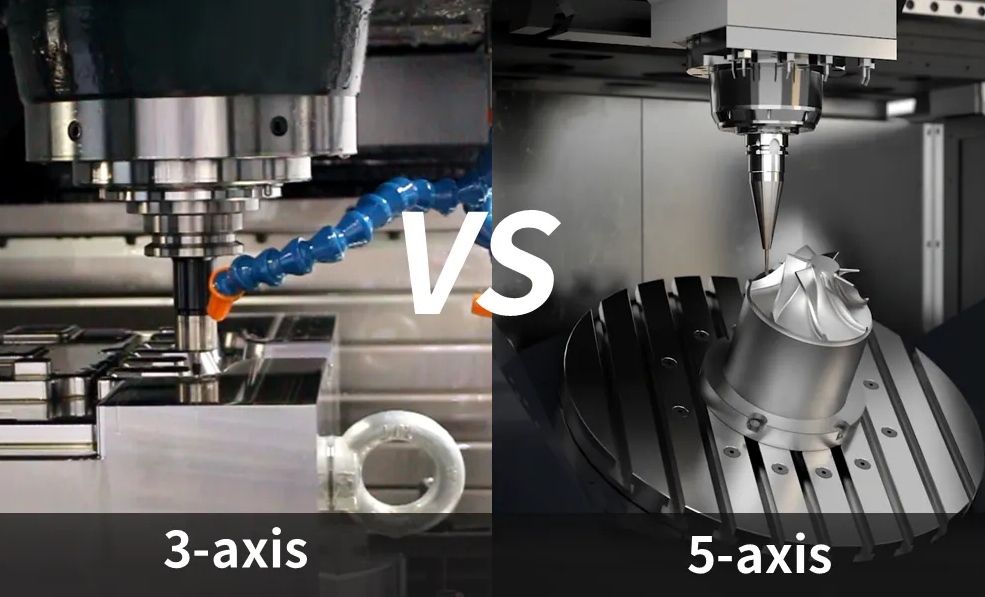

The Technical Divide: 3-Axis vs. 5-Axis Milling

Grasping the mechanical distinctions is the initial move to improve your production plan. Both methods cut away material with computer-guided tools, yet the range of tool movements greatly affects the outcome.

3-Axis Milling: The Foundation of Precision

3-axis machining works along the X, Y, and Z axes. It remains the most affordable option for items with fairly even surfaces or basic shapes.

• Best for: Enclosures, brackets, and simple shafts.
• Advantages: Cheaper programming and quicker setup for large runs of plain designs.
• The Rejin CNC Edge: We apply fast 3-axis machines to create fine surface quality on 3C electronics cases and car mounting plates, keeping costs low while upholding standards.

5-Axis Milling: Mastering Complex Geometries

5-axis machining includes two turning axes (A and B), so the cutting tool can reach the workpiece from any angle in one position.

• Best for: Impellers, turbine blades, intricate medical implants, and curved aerospace connectors.
• Key Benefit: It removes the need for several repositioning steps, which sharply cuts down on built-up placement mistakes.
• Efficiency Gain: For example, a new energy vehicle motor housing that usually takes 120 minutes on a 3-axis machine can finish in only 45 minutes with our 5-axis linkage tech.

Core Challenges in Machining Complex Non-Standard Parts

Producing non-standard parts involves many technical obstacles. The greater the part’s intricacy, the larger the chance of “tolerance stack-up”—where minor errors from each step build up to create a final item that does not pass checks.

Solving Tolerance Stack-up and Geometric Precision

For a part that needs work on five or six sides, a 3-axis machine demands the worker to shift and re-secure the part several times. Each adjustment brings a risk of tiny deviations at the micron scale.

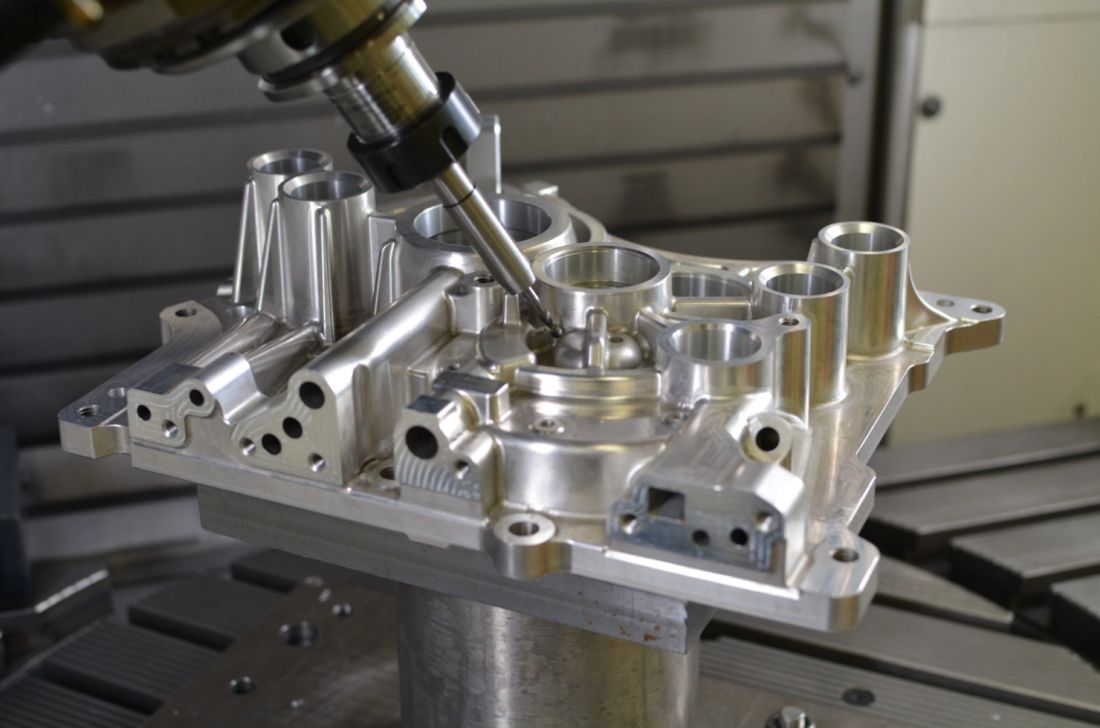

• The Rejin CNC Solution: Our 5-axis features enable “One-Setup” work. This keeps traits like coaxiality and parallelism within ±0.005mm, since the part stays in its starting position until done.

Material Versatility and Batch Consistency

Various materials respond differently to cutting warmth and shaking. Be it the light needs of 7075 Aluminum or the strong demands of Titanium alloy and PEEK:

• Vibration Control: Detailed, thin-walled items tend to bend. We employ custom tools and set process guides to make sure the first part matches the 1,000th one.
• Consistency: Our ISO 9001:2015 and IATF 16949 certifications go beyond labels; they show a strict setup where every CNC program gets checked via DFM (Design for Manufacturing) prior to the initial cut.

The Rejin CNC Advantage: From Blueprint to Mass Production

At Rejin CNC, we go beyond simply “cutting metal.” We offer a full manufacturing link that ties your early idea to a product ready for the market.

DFM Support and Rapid Iteration

A major issue in B2B buying is getting a design that proves “hard to make” or overly pricey.

• Engineering Assistance: Our group delivers DFM review in the quote stage. We spot spots where a 5-axis method can lower costs by cutting waste or where a small design change allows 3-axis use to save funds.
• Speed: We provide a 3–7 day prototype timeline, so your R&D group can test and refine at the pace of today’s market.

Industry-Specific Applications

To view where these methods add the greatest worth, consider actual cases managed by Rejin CNC:

• Robotics & Automation: We make high-accuracy joints and drive parts. With 5-axis milling, we reach the micron-scale accuracy needed for even robotic arm motion, fixing the problem of “mechanical backlash.”
• UAV & Aerospace: Light 7075 aluminum camera gimbals and connectors. Our 5-axis machines support the very thin walls essential for lowering flight weight, while holding a firm structure.
• Pro Audio-Visual: Exact knobs and cases for top amplifiers. The main task here is looks. Our CNC turning and milling, paired with quality anodizing, produce the fine touch that worldwide brands expect.

Quality Control and One-Stop Surface Finishing

A part’s worth depends on its end treatment. We remove the hassle of dealing with various suppliers.

• In-house Surface Treatments: From Type II/III Anodizing and Sandblasting to Electroplating and Laser Engraving, we manage the whole process.
• Rigorous Inspection: We apply First Article Inspection (FAI) and full checks for vital sizes to guarantee defect-free delivery.

Why Choose a Specialized Partner?

Deciding between 3-axis and 5-axis milling goes beyond the equipment—it’s about the skill guiding it. A focused facility like Rejin CNC delivers technical accuracy, material knowledge, and a reliable supply network to your effort. By selecting the proper machining path, you cut expenses, avoid flaws, and speed up your market entry.

Ready to elevate your precision parts?

Contact Rejin CNC now for a technical review of your plans. Our team will give a custom quote and DFM input within 24 hours.

• Email: Ruonan@rejincnc.com
• WhatsApp: +86 18362358467

FAQ

Q: When is 5-axis machining more cost-effective than 3-axis?

A: When a part requires multiple setups on a 3-axis machine. 5-axis saves labor costs and reduces the risk of expensive scrap caused by re-clamping errors, making it cheaper for complex geometries.

Q: What is the maximum precision Rejin CNC can achieve for non-standard parts?

A: Depending on material and geometry, we can achieve tolerances as tight as ±0.001mm to ±0.005mm using our high-end 5-axis centers and precision turning equipment.

Q: Can you help with material selection if my part has specific environmental requirements?

A: Yes. Our DFM support includes material consulting. Whether you need corrosion resistance (Stainless Steel), lightweight strength (Titanium), or insulation (PEEK), we match the material to your application.

Q: Do you support small-batch production for specialized industrial components?

A: Absolutely. We specialize in everything from rapid prototyping (1-10 pieces) to small-to-medium batch production, ensuring high-end consistency across all volumes.
