| Tolerance Type | Description |
| Precision Tolerance | Parts are manufactured and inspected strictly according to your drawing specifications and GD&T annotations, with a minimum tolerance of ±0.05 mm. |
| General Tolerance | ±0.05 mm |
| Minimum Feature Size | 0.5 mm. The exact minimum feature size may vary depending on the part geometry and selected material. |
| Threading & Tapped Holes | Capable of machining any standard thread sizes, as well as customized thread specifications. |
| Edge Condition | Sharp edges are deburred and chamfered by default. |
| Surface Finishing | Anodizing, Powder Coating, Spray Painting, Laser Engraving, Silk Screen Printing |
| Minimum Wall Thickness | 0.5mm |
| Minimum End Mill Size | 0.5mm |
| Minimum Drill Hole Size | 1mm |
| Minimum Part Size | CNC Milling: 5 × 5 × 5 mm; CNC Turning: 2 × 2 mm; |
| Maximum Part Size | CNC Milling: 4000 × 1500 × 600 mm
CNC Turning: 200 × 500 mm |
An audio interface panel is the handshake between your electronics and the cables the world plugs in. Every XLR hole, every switch label, every chamfer is where users judge build quality — our panel program gets those details production-consistent.

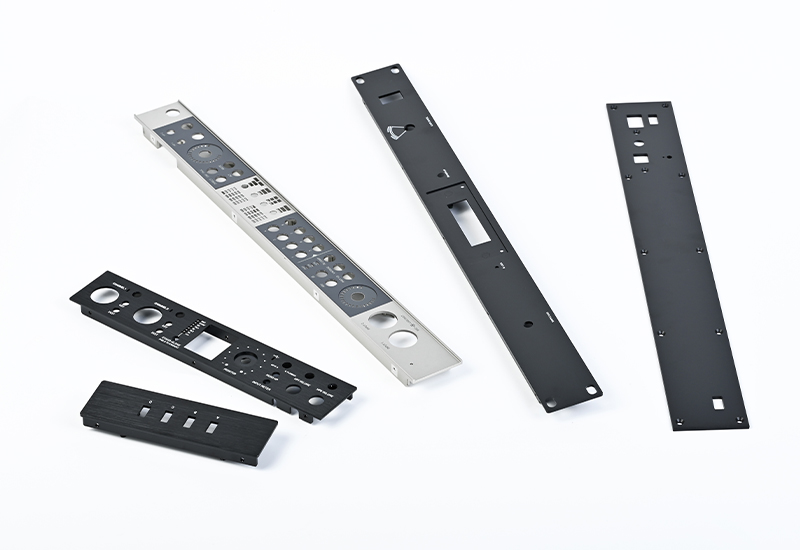

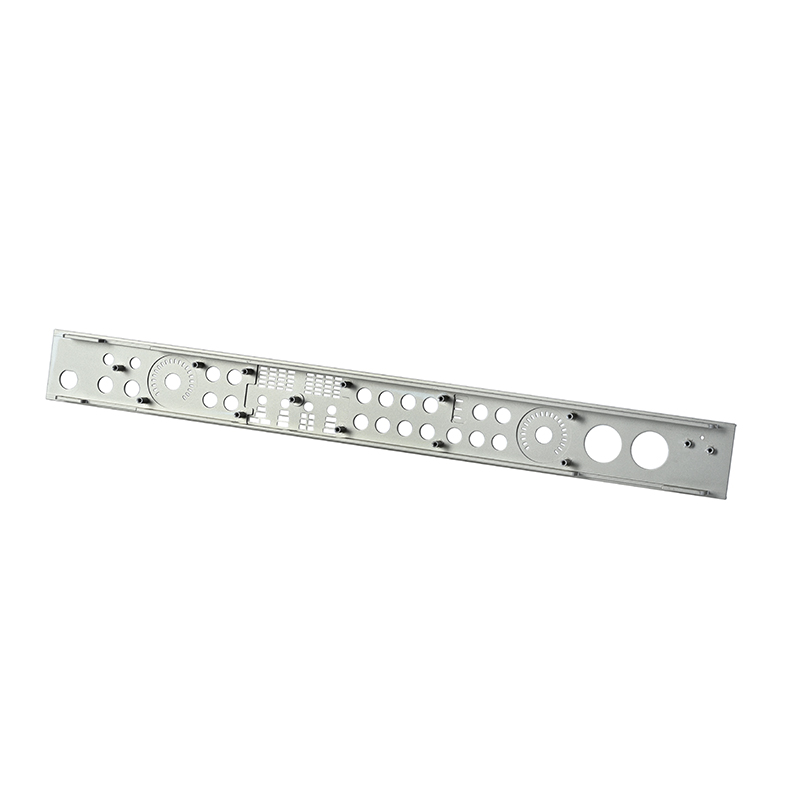

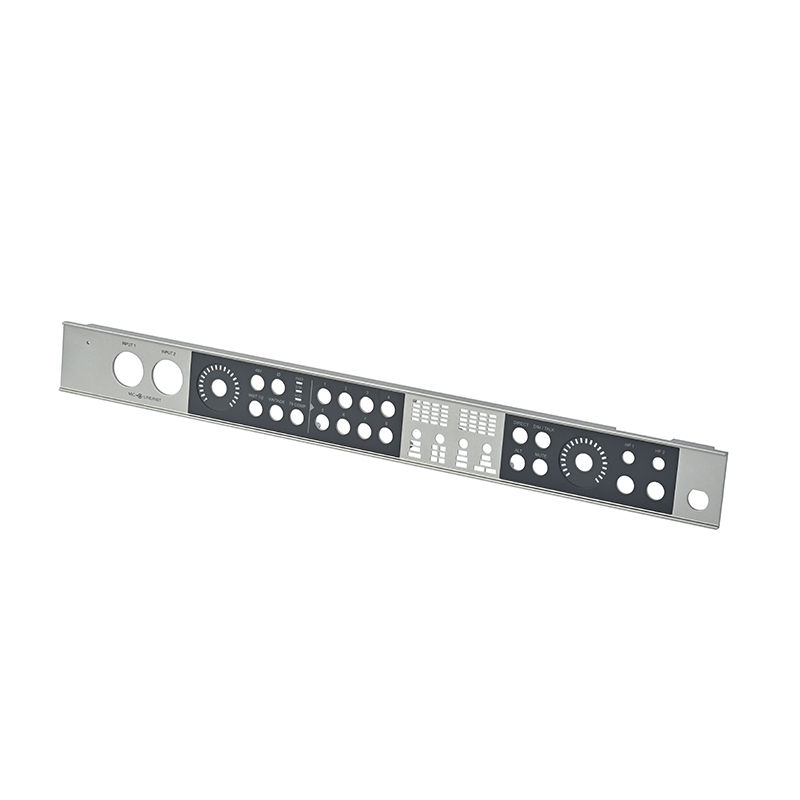

What we manufacture: XLR/TRS connector panels; control-surface faceplates; I/O rear panels for consoles and interfaces; rack-ear and side-cheek panels; mixer sub-panels — 6063 aluminum, machined and stamped, from 1.0–4.0mm.
Alignment is the product: connector cutouts are positioned from your PCB or mechanical CAD data to ±0.02mm, so Neutrik-style connectors seat square without filing; silkscreen legends land centered in their windows because print tooling is registered from the same datum as the machining.
Feel-good surfaces: polish then fine-sandblast before anodize — the finish that reads premium in a dim studio and doesn't show fingerprints on tour. Anodize colors from classic black to champagne with ΔE batch control; laser-filled legends for multi-color branding.
Volume ready: 500-piece boutique console runs to 300k+ annual panel programs, with archived CAM so revision 4 matches revision 1 when your product line turns over.
Machining and printing registered to one datum — connectors seat square, legends land centered.
Polish + fine sandblast under anodize: premium in dim light, fingerprint-resistant on tour.
CAM archived per program; rev-4 panels match rev-1 when your line turns over.
From aerospace-grade aluminum to medical-certified engineering plastics, our in-house CNC machining centers work a broad range of metals and plastics under one roof.
Don’t see your material? Send your drawing for review — we will confirm availability and quote it.
Functional and cosmetic finishes applied in-house or through vetted partners.
Type II protective anodize, natural silver finish.
Type III hard coat, wear-resistant black.
Blue, red, gold, green dye for audio and 3C.
Uniform matte texture, hides machining marks.
Durable corrosion-resistant RAL colors.
Removes free iron, boosts stainless corrosion.
Zinc, nickel, chrome, tin for connectors.
Permanent non-contact logos and serials.
Custom CNC turned aluminum knobs produced on precision lathes. We manufacture control knobs with CD texture, anodized finishes and custom bores for audio equipment, home appliances and industrial instruments.
View Product →
High-efficiency VMCs for prototype, mid-volume and large-batch metal parts production.
Integrated drilling, tapping and milling shortens lead time for aluminum enclosures.
Combined drilling-milling lines support both small batches and volume OEM orders.
Well-organized production zones support everything from one-off parts to mass programs.
Systematic line layout raises machining efficiency and guarantees on-time delivery.
Complete CNC equipment set enables stable continuous running for OEM volumes.
Dongguan, China · 200+ CNC machines · In-house anodizing & laser cutting · Visitors and third-party inspections welcome.
Fully certified quality management system. Every batch ships with material certificates and inspection reports you can trust.
Our engineers review every drawing upfront — flagging tolerances, undercuts and cost drivers before a single chip is cut.
Custom foam, wooden crates and FBA-ready packaging. Door-to-door freight to 60+ countries with full tracking.
Your message lands directly with our senior engineers — instantly acknowledged.
We study your requirements and propose a workable solution with material & process options.
Detailed quotation with specs, options and lead time — no hidden fees.
Approve the sample, then we mass-produce with full QC and on-time shipping.
WhatsApp: +86 13790500374
Email: info@rejincnc.com
Your CAD files are kept strictly confidential. Quotation within 24 hours.
