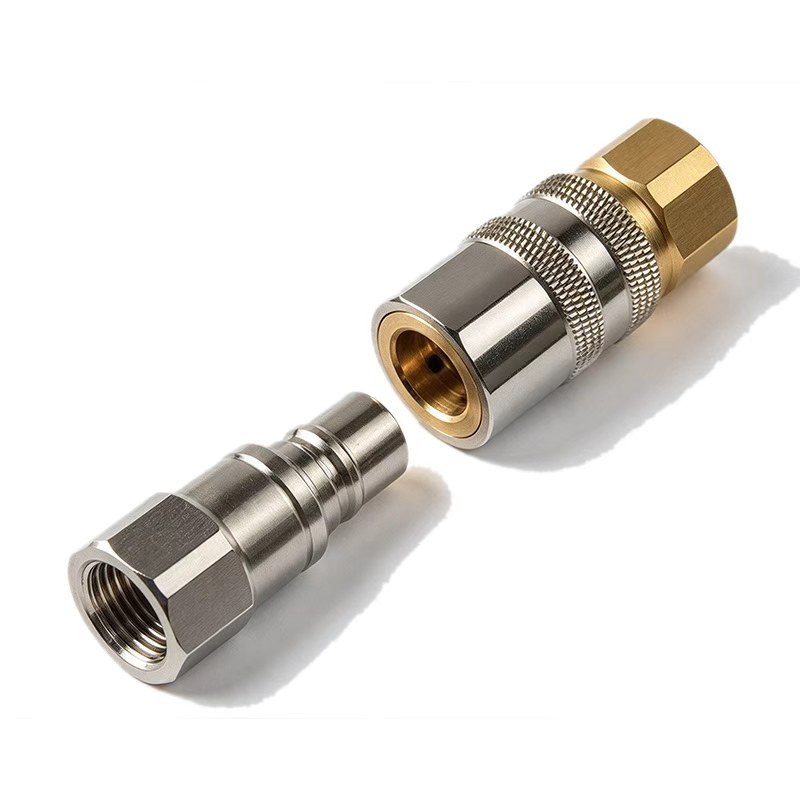

Custom CNC Control Rod & Fluid Connector Couplings
- Precision Thread & Seal Grooves: Coupling threads, seal grooves and valve seats are turned to tight tolerances, so connections seal leak-free even under pulsating hydraulic load.
- Stainless Steel / Brass / Aluminum: 304/316 stainless for corrosion resistance, brass for low-torque fitting bodies, aluminum for light aerospace robotics - per drawing.
- ±0.005 mm on Critical Features: Thread pitch, bore concentricity and sealing faces held to ±0.005 mm, verified on CMM with 0.0015 mm accuracy.
- Quick-Turn Prototypes: One-piece prototypes in 5-15 days, with full first-article report before batch production under ISO 9001 / AS9100D.
| Tolerance Type | Description |
| Precision Tolerance | Parts are manufactured and inspected strictly according to your drawing specifications and GD&T annotations, with a minimum tolerance of ±0.05 mm. |
| General Tolerance | ±0.05 mm |
| Minimum Feature Size | 0.5 mm. The exact minimum feature size may vary depending on the part geometry and selected material. |
| Threading & Tapped Holes | Capable of machining any standard thread sizes, as well as customized thread specifications. |
| Edge Condition | Sharp edges are deburred and chamfered by default. |
| Surface Finishing | Anodizing, Powder Coating, Spray Painting, Laser Engraving, Silk Screen Printing |
| Minimum Wall Thickness | 0.5mm |
| Minimum End Mill Size | 0.5mm |
| Minimum Drill Hole Size | 1mm |
| Minimum Part Size | CNC Milling: 5 × 5 × 5 mm; CNC Turning: 2 × 2 mm; |
| Maximum Part Size | CNC Milling: 4000 × 1500 × 600 mm
CNC Turning: 200 × 500 mm |
What Is This Service
Round flanges and end caps do the heavy lifting in every EV drivetrain: they seal the e-motor housing, mount the gearbox to the motor, close coolant pumps and compressors, and locate bearings concentric to the shaft. Because these parts rotate or seal, their face flatness, bolt-circle runout and center-bore diameter matter more than their shape - a flange that is off by a few tenths ruins seal life and bearing alignment.
We turn these parts on precision CNC lathes up to 260 mm diameter from 6061 aluminum, 304/316 stainless, copper or brass. Faces are diamond-cut to Ra0.8, bolt holes and lightening windows are drilled in the same setup so the pitch circle runs true to the bore, and center threads or bearing seats are tapped or bored to your drawing.
Finish follows the job: diamond-cut as standard for seal surfaces, bead-blast or anodize for visual aluminum parts, or passivated for stainless. We hold +/-0.01 mm on critical bores and face flatness, run CMM first-article reports, and ramp from 1-3 day prototypes to serial production under NDA.
Connector & Coupling Machining Capabilities
Precision Thread & Seal Grooves
CNC lathes handle round flanges, end caps and housing parts up to 260 mm diameter with Ra0.8 diamond-cut faces.
Multi-Material Body
Bolt holes and lightening windows are drilled in the same setup as the bore, so the pitch circle runs concentric.
CMM-Verified Sealing Faces
Aluminum for weight, 304/316 stainless for pressure and corrosion, copper/brass where conductivity is needed.
Materials We Machine
From aerospace-grade aluminum to medical-certified engineering plastics, our in-house CNC machining centers work a broad range of metals and plastics under one roof.
Metals
Aluminum
Stainless Steel
Carbon & Alloy Steel
Brass & Copper
Titanium & Exotics
Engineering Plastics
POM (Delrin)
Nylon (PA66)
PTFE (Teflon)
PEEK / PEI (Ultem)
ABS / PC / PMMA
Don’t see your material? Send your drawing for review — we will confirm availability and quote it.
Surface Finish Options
Functional and cosmetic finishes applied in-house or through vetted partners.

Clear Anodize
Type II protective anodize, natural silver finish.

Black Hard Anodize
Type III hard coat, wear-resistant black.

Color Anodize
Blue, red, gold, green dye for audio and 3C.

Bead Blast
Uniform matte texture, hides machining marks.

Powder Coating
Durable corrosion-resistant RAL colors.

Passivation
Removes free iron, boosts stainless corrosion.

Plating
Zinc, nickel, chrome, tin for connectors.

Laser Marking
Permanent non-contact logos and serials.
From Drawing to Delivery
Quality You Can Verify


More Products in This Category
Custom CNC-machined harmonic drive gear components - flexspline, circular spline, cross-roller bearings and gear hobbing in alloy steel or stainless, CMM-verified tooth profile.
View Product →
Custom CNC turned stainless steel shaft clamping collars for precision locking in automation, robotics and linear motion systems.
View Product →
Custom CNC-machined 7075-T6 aluminum robot joint housing bodies and arm linkages - five-axis finish machining, 0.01 mm coaxiality, powder coat.
View Product →
Inside Our Factory — 200+ Machines Under One Roof
Vertical Machining Centers
High-efficiency VMCs for prototype, mid-volume and large-batch metal parts production.
Drill & Tap Machining Centers
Integrated drilling, tapping and milling shortens lead time for aluminum enclosures.
Multi-Function Machining Shop
Combined drilling-milling lines support both small batches and volume OEM orders.
CNC Production Workshop
Well-organized production zones support everything from one-off parts to mass programs.
Standard CNC Lines
Systematic line layout raises machining efficiency and guarantees on-time delivery.
5-Axis Machining Equipment
Complete CNC equipment set enables stable continuous running for OEM volumes.
Dongguan, China · 200+ CNC machines · In-house anodizing & laser cutting · Visitors and third-party inspections welcome.
Quality, Engineering & Logistics — Built for Global Buyers

IATF 16949 & ISO 9001 Certified
Fully certified quality management system. Every batch ships with material certificates and inspection reports you can trust.

Free DFM Engineering Support
Our engineers review every drawing upfront — flagging tolerances, undercuts and cost drivers before a single chip is cut.

Secure Packaging & Global Shipping
Custom foam, wooden crates and FBA-ready packaging. Door-to-door freight to 60+ countries with full tracking.
Frequently Asked Questions
What materials do you machine couplings from?
How do you guarantee leak-free sealing?

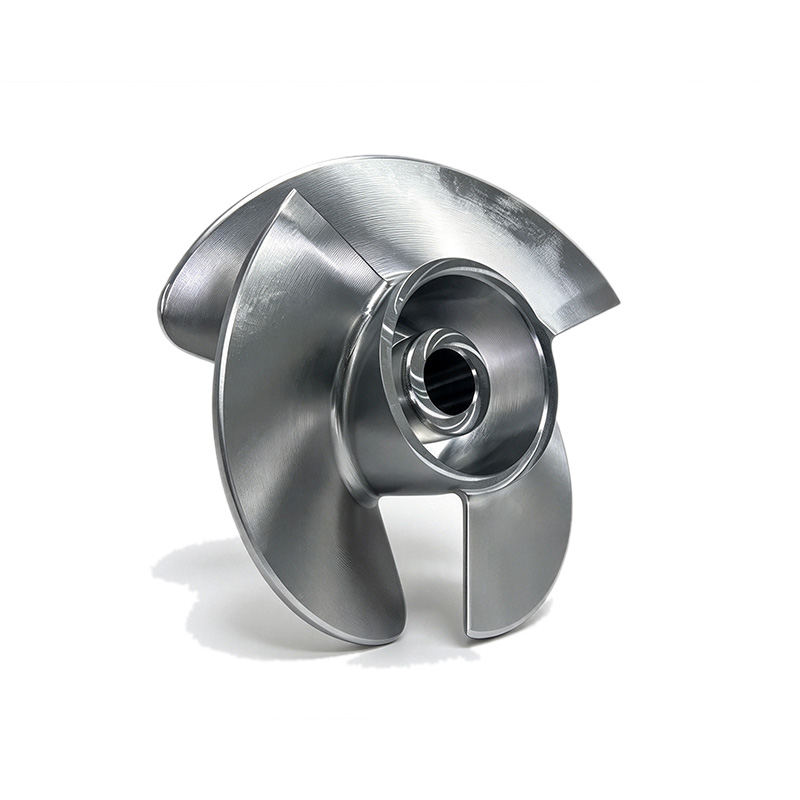

Can you machine impellers and vanes?
What is the prototype lead time?
