| Tolerance Type | Description |
| Precision Tolerance | Parts are manufactured and inspected strictly according to your drawing specifications and GD&T annotations, with a minimum tolerance of ±0.05 mm. |
| General Tolerance | ±0.05 mm |
| Minimum Feature Size | 0.5 mm. The exact minimum feature size may vary depending on the part geometry and selected material. |
| Threading & Tapped Holes | Capable of machining any standard thread sizes, as well as customized thread specifications. |
| Edge Condition | Sharp edges are deburred and chamfered by default. |
| Surface Finishing | Anodizing, Powder Coating, Spray Painting, Laser Engraving, Silk Screen Printing |
| Minimum Wall Thickness | 0.5mm |
| Minimum End Mill Size | 0.5mm |
| Minimum Drill Hole Size | 1mm |
| Minimum Part Size | CNC Milling: 5 × 5 × 5 mm; CNC Turning: 2 × 2 mm; |
| Maximum Part Size | CNC Milling: 4000 × 1500 × 600 mm
CNC Turning: 200 × 500 mm |

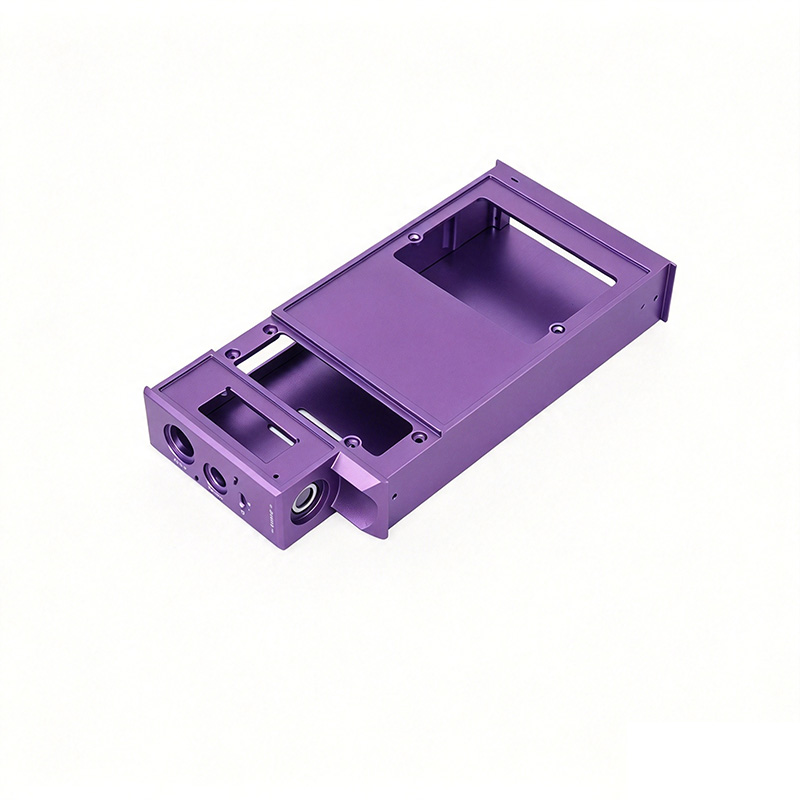

A HIFI product is only as good as its chassis. A solid CNC-machined aluminum chassis does three things an enclosure made from folded sheet cannot: it grounds the DAC and amplifier electronics, it damps vibration and microphonics that color the sound, and it gives your product the machined, premium finish that audiophiles expect. We mill these chassis from solid 6061-T6 billet on 5-axis centers.

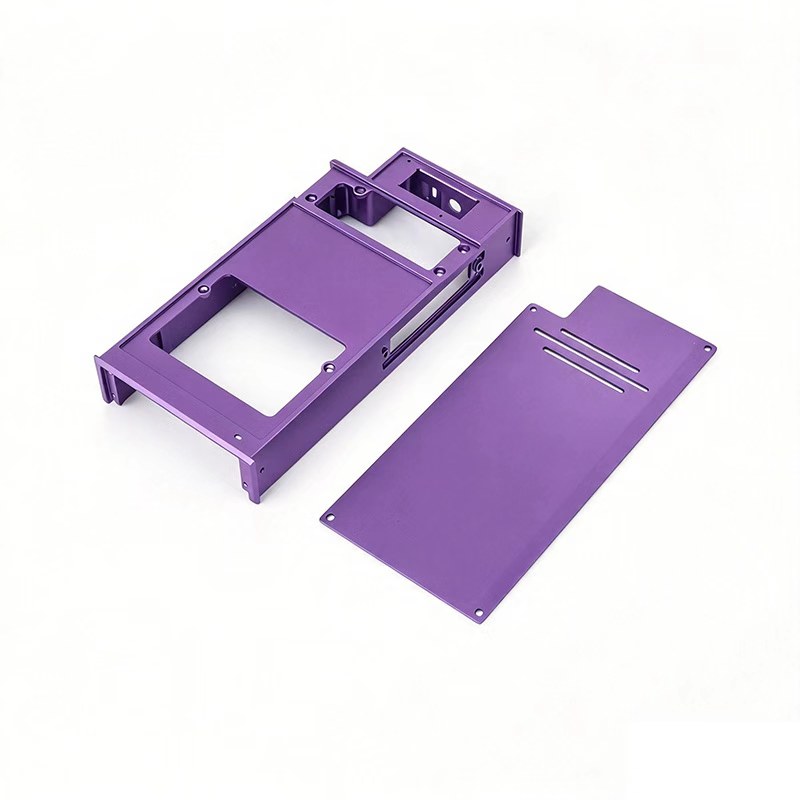

Every cut is driven by your drawing: front-panel openings for volume and selectors knobs, 6.35 mm and 4-pin XLR headphone jacks, display windows, USB slots, ventilation grilles, and internal pockets for PCB, transformer and power-supply mounting. Tapped holes are threaded directly into the billet (or with steel inserts where load requires), and the separate cover plate bolts to the body with flush countersunk screws.

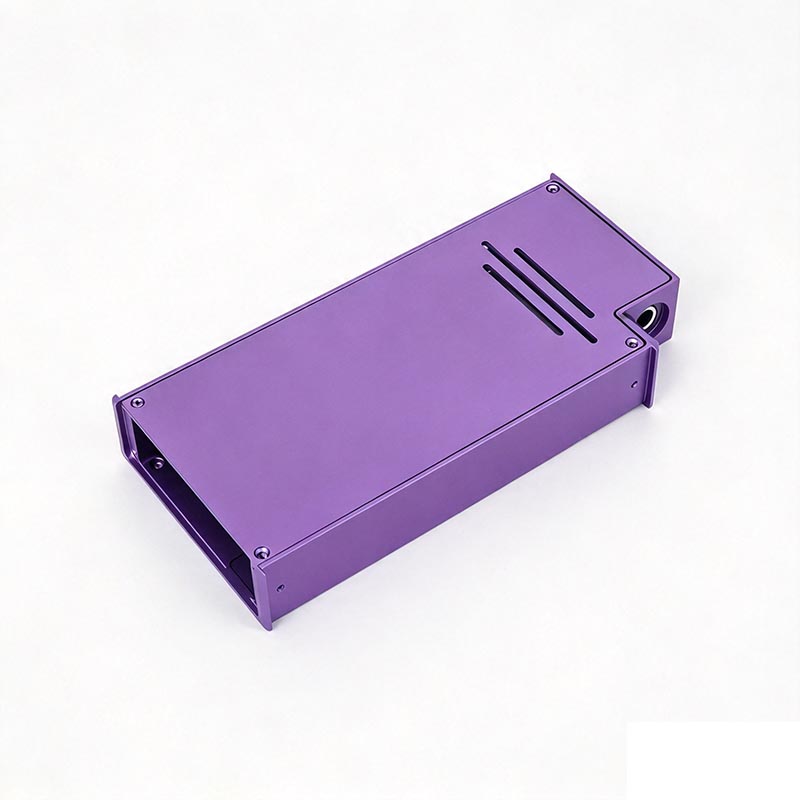

After machining, the chassis is anodized in your brand color - purple, black, silver or a custom match - with laser-etched or screen-printed legends on request. Tolerance holds at +/-0.01 mm and surface roughness at Ra0.8, so front-panel gaps are uniform and knobs spin without play. Samples ship in 8-15 days; production runs scale under NDA for brands of any size.
Milled from one piece of 6061 aluminum instead of folded sheet, so walls are stiff, seams are tight and the chassis damps vibration instead of ringing.
Knob shafts, jack cutouts, display windows and vents are CNC-milled exactly to your front-panel PCB, with chamfered, burr-free edges.
Purple, black, silver or a custom anodized color plus laser-etched legends turns the chassis into your brand product, not a generic box.
From aerospace-grade aluminum to medical-certified engineering plastics, our in-house CNC machining centers work a broad range of metals and plastics under one roof.
Don’t see your material? Send your drawing for review — we will confirm availability and quote it.
Functional and cosmetic finishes applied in-house or through vetted partners.
Type II protective anodize, natural silver finish.
Type III hard coat, wear-resistant black.
Blue, red, gold, green dye for audio and 3C.
Uniform matte texture, hides machining marks.
Durable corrosion-resistant RAL colors.
Removes free iron, boosts stainless corrosion.
Zinc, nickel, chrome, tin for connectors.
Permanent non-contact logos and serials.
High-efficiency VMCs for prototype, mid-volume and large-batch metal parts production.
Integrated drilling, tapping and milling shortens lead time for aluminum enclosures.
Combined drilling-milling lines support both small batches and volume OEM orders.
Well-organized production zones support everything from one-off parts to mass programs.
Systematic line layout raises machining efficiency and guarantees on-time delivery.
Complete CNC equipment set enables stable continuous running for OEM volumes.
Dongguan, China · 200+ CNC machines · In-house anodizing & laser cutting · Visitors and third-party inspections welcome.
Fully certified quality management system. Every batch ships with material certificates and inspection reports you can trust.
Our engineers review every drawing upfront — flagging tolerances, undercuts and cost drivers before a single chip is cut.
Custom foam, wooden crates and FBA-ready packaging. Door-to-door freight to 60+ countries with full tracking.
Your message lands directly with our senior engineers — instantly acknowledged.
We study your requirements and propose a workable solution with material & process options.
Detailed quotation with specs, options and lead time — no hidden fees.
Approve the sample, then we mass-produce with full QC and on-time shipping.
