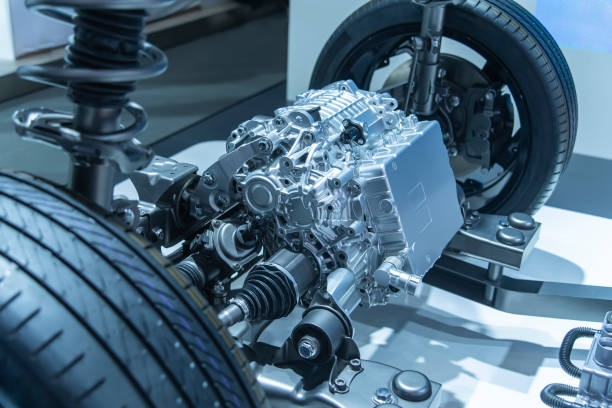

High Precision 5 Axis CNC Machining for EV Motor Housings

Electric vehicles are growing quickly. This pushes the need for lighter powertrains that stay thermally safe. Engineers focus on weight reduction to boost range. High-torque motors still generate lots of heat, so good cooling matters. Rejin CNC helps here as a certified precision partner. They offer 5-axis CNC machining for tight tolerances. This supports making complex EV motor housings and liquid cooling systems.

The Engineering Dilemma in Modern EV Components

Finding the right balance between structural strength and good thermal management remains one of the biggest challenges in EV engineering today.

Lightweight Motor Housings: Wall Thickness vs. Structural Strength

Building EV motor housings today involves using less material. The parts must still resist ongoing vibration.

• Thin-Wall Deflection Issues: Thin walls in aluminum parts can bend or shake in standard milling. Keeping the stator bore round becomes difficult.
• Complex Internal Geometry: These housings have ribs inside, channels for wires, and brackets. Cutting them needs several angles.
• Weight Optimization Targets: Alloys such as 6061 or 7075 aluminum cut weight. But the cuts must be precise to prevent weak areas.

High-Precision Liquid Cooling Plates: Flow Channels vs. Leakage Risks

Cooling plates use small fluid channels. These channels spread heat from batteries and electronics.

• Micro-Channel Depth Limitations: Cutting deep narrow paths needs steady high-speed moves. This prevents tool breaks and keeps the bottom smooth.
• Strict Hermetic Sealing: Small variations in the seal groove or surface lead to leaks. Leaks can damage electrical parts in the car.
• Thermal Contact Resistance: The plate surface needs to be smooth. Smoothness allows solid contact with IGBT modules or cells.

5-Axis CNC Machining: Transforming EV Component Production

Advanced multi-axis technology helps manufacturers overcome shape limitations that slow down traditional three- or four-axis setups.

Eliminating Cumulative Tolerance Errors via Single-Setup Machining

Simultaneous máquina CNC de 5 eixos lets the cutting tool reach the workpiece from all directions in one operation. This improves overall accuracy.

• Zero Re-Fixturing Errors: Machining exterior profiles, deep internal bores, and mounting faces in a single setup removes tolerance build-up from multiple clampings.
• Micron-Level Tolerances: Rejin CNC maintains consistent accuracy up to ±0.005mm. This ensures bearing bores and stator alignments match perfectly during high-speed motor assembly.
• Optimal Tool Angle Engagement: The continuous movement of A and C axes keeps the tool at the right angle on curved surfaces. This prevents tool deflection in deep pockets.

Accelerating Production Cycles and Improving Surface Finish

Multi-axis machining increases material removal rates while delivering better surface quality on important parts.

• Drastic Cycle Time Reduction: Advanced 5-axis tool paths cut the processing time of a complex motor housing from 120 minutes down to about 45 minutes. This raises overall factory output.
• Superior Surface Quality: The process achieves a smooth finish below Ra0.8μm. This level is necessary for proper gasket sealing and efficient heat transfer.
• Extended Tool Longevity: Steady chip load and cutting speeds prevent overheating of carbide tools. This reduces micro-cracks and helps tools last longer.

Where Rejin CNC Delivers Superior Performance

Our machining setups are used in several critical areas of electric powertrains. They solve real production challenges.

Integrated Drive Motor Enclosures

The main drive motor housing protects components and forms part of the vehicle’s thermal system.

• Exact Application Location: It sits on the front or rear e-axle, containing the high-rpm rotor, stator, and reduction gearsets.
• Critical Problem Solved: Traditional castings often have porosity and thick walls. Our 5-axis CNC-milled enclosures achieve up to 30% weight reduction while keeping flawless sealing surfaces that block moisture.
• Enhanced Bearing Alignment: Precision-bored bearing journals hold concentricity within microns. This reduces shaft misalignment, lowers noise and vibration, and extends gear life.

Power Inverter Thermal Management Bases

Inverters convert battery power for the drive motor and generate concentrated heat.

• Exact Application Location: They mount under high-voltage IGBT modules and DC-DC converters in the engine bay.
• Critical Problem Solved: Our 5-axis CNC machining creates curved snake-like fluid tracks in aluminum blocks. This eliminates hot spots and prevents inverter overheating.
• Flatness and Sealing Integrity: The process reaches mating flatness under 0.02mm across large areas. This supports even thermal paste application and stops glycol leaks.

Why Global Automotive Brands Partner with Rejin CNC

Rejin CNC offers more than basic machining. We provide an integrated engineering solution for international clients.

Strict Quality Control and IATF 16949 Compliance

We back our processes with a solid quality system made for automotive needs.

• Automotive Grade Certification: Our ISO 9001:2015 and IATF 16949 systems give full traceability from raw material to finished part.
• First Article Inspection (FAI): We run detailed FAI checks on first batches. This validates tooling and cuts defects in later runs.
• 100% CMM Validation: Critical dimensions, roundness, and position tolerances get full checks with Coordinate Measuring Machines before shipment.

Comprehensive Material Adaptability and Surface Treatments

Our factory pairs precise machining with post-processing services. This creates a full manufacturing package.

• Diverse Automotive Alloys: We machine 6061-T6, 7075-T6 aluminum, magnesium-aluminum alloys, and corrosion-resistant stainless steels.
• In-House Surface Finishing: We offer anodizing, bead blasting, and protective electroplating. These steps boost resistance to road salt and moisture.
• Expert DFM Analysis Support: Our team reviews customer drawings within 24 hours. We suggest changes to corners, deep pockets, and overall costs.

Accelerate Your EV Component Production Today

Moving to advanced electric vehicles needs lightweight precision that older methods cannot deliver. Rejin CNC combines 5-axis CNC milling, technical experience, and strong quality control to turn complex designs into real parts. Whether you need prototypes for testing or high-volume production, our team delivers accurate components on time.

Contact our engineering experts at Ruonan@rejincnc.com or call +86 18362358467 today to receive a detailed DFM analysis and a commercial quote within 24 hours.

FAQ

Q: Why is 5-axis CNC machining preferred for EV motor housings?

A: 5-axis CNC machining cuts high tooling costs and long waits tied to casting dies. Engineers update designs fast and tweak cooling channels in software. This also gives stronger parts since the work starts from solid aluminum billets.

Q: How does the surface roughness of a liquid cooling plate affect the overall thermal efficiency of an EV’s power inverter?

A: Rough surfaces leave tiny air gaps between the plate and the inverter module. These gaps work as insulation. A finish below Ra0.8μm from precise CNC milling boosts the contact area so heat moves well into the coolant.

Q: What specific measures prevent thin-walled aluminum housings?

A: Machinists rely on vibration-reducing fixtures along with steady tool paths and ongoing 5-axis moves. This keeps cutting forces even and cuts stress points to stop wall bending or size shifts.

Q: How do manufacturers guarantee zero coolant leakage in multi-piece EV cold plate assemblies?

A: Tight tolerances on gasket grooves help, with flatness held within 0.01-0.02 mm. Smooth surfaces aid good seals too. After machining, pressure tests along with helium leak checks and CMM inspections confirm there is no leakage.
